Hikvision IP VDP DS-KIS603-P
Hikvision IP Video Intercom Kit_DS-KIS603-P(C) - Image 2
Hikvision IP Video Intercom Kit_DS-KIS603-P(C) - Image 3

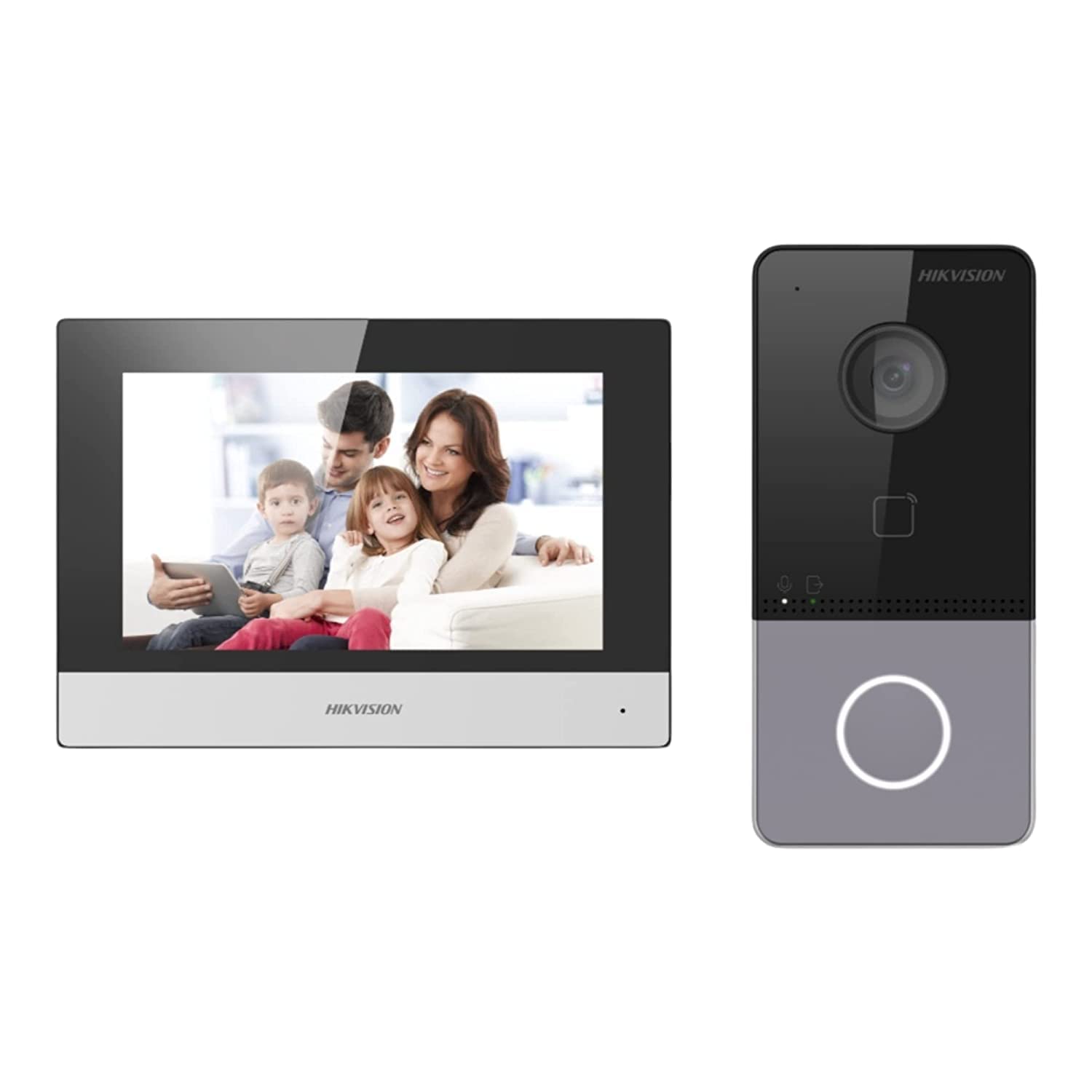

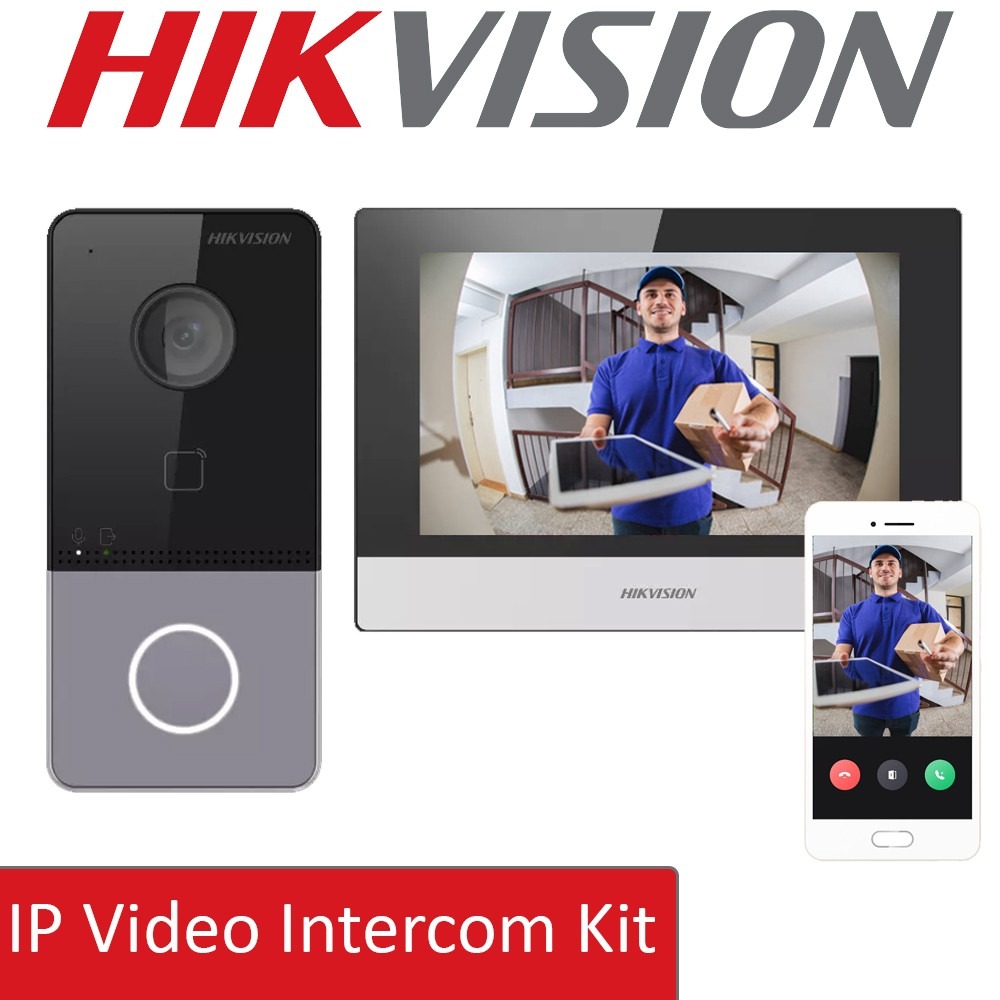

Hikvision IP Video Intercom Kit_DS-KIS603-P(C)

Hikvision IP video intercom kit for villa or house, only one call button;
n DS-KV6113-WPE1 x1;
n DS-KH6320-WTE1 x1;
n PSU x2;

DS-KIS603-P

₹15,799.00

(+ Including Tax)

Availability: 1 in stock

Door station/System parameters

  • Operation system :Embedded Linux operation system
  • Flash32 MB
  • RAM128 MB
  • Door station/Video parameters
  • Camera2MP HD camera
  • Night vision :Low illumination IR supplement mode:3 m
  • Backlight compensation Support
  • Digital noise reduction Support
  • WDR :True WDR
  • Field of view :Horizontal: 129° Vertical: 75°
  • Video Compression Standard :H.264
  • Stream : Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
  • Motion detection :Support
  • Flash-avoid frequency : 50 Hz, 60 Hz
  • Door station/Audio parameters
  • Audio input : Built-in omnidirectional microphone
  • Audio output : Built-in loudspeaker
  • Audio quality : Noise suppression and echo cancellation
  • Audio compression standard : G.711 U
  • Audio compression Rate : 64 Kbps
  • Audio intercom : Two-way audio communication
  • Door station/Network parameters
  • Network protocol : TCP/IP, RSTP
  • Wired network : 10/100 Mbps Ethernet
  • Door station/Device interfaces
  • RS-485 : 1
  • Alarm input : 4
  • Debugging port : 1
  • Grounding : 1
  • TAMPER switch : 1
  • Door station/General
  • Power consumption : ＜ 10 W
  • Working temperature : -40° C to 53° C(-40° F to 127.4° F)
  • Working humidity : 10% to 95%
  • Dimension : 138 mm × 65 mm × 27 mm
  • Installation : Surface mounting
  • Protection level : IP65
  • Indicator : 2
  • Power supply

    IEEE802.3af, standard PoE

    12 VDC

    Indoor station/System parameters

  • Operation system : Embedded Linux operation system
  • Memory : 128 MB
  • Flash : 32 MB
  • Indoor station/Display parameters
  • Display screen : 7-inch colorful TFT screen
  • Display resolution : 1024 × 600
  • Operation method : Capacitive touch screen
  • Indoor station/Audio parameters
  • Audio input : Built-in omnidirectional microphone
  • Audio output : Built-in loudspeaker
  • Audio quality : Noise suppression and echo cancellation
  • Audio compression standard : G.711 U
  • Audio compression Rate : 64 Kbps
  • Indoor station/Network parameters
  • Wired network : 10/100 Mbps self-adaptive
  • Wireless network : Wi-Fi 802.11 b/g/n
  • Protocol : TCP/IP, SIP, RTSP
  • RS-485: 1
  • RJ-45 10/100 Mbps self-adaptive
  • Indoor station/Device interfaces
  • RS-485 : 1
  • Alarm input : 8-ch alarm inputs
  • Relay output : 2
  • TF card : Max to 32 G, SD 2.0 or lower version
  • Indoor station/General
  • Power consumption : ≤ 6 W
  • Working temperature : -10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity : 10% to 90%
  • Dimension : (L x W x H)200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
